Power
1400W Peak, 700W Continuous
Frequency Response
48Hz - 20KHz
Max SPL (1M) (Peak)
129 dB
LF Driver
10-inch HH designed professional low mid driver featuring imported glass reinforced cone
HF Driver
1-inch Compression Driver
Coverage
90°H X 60°V
Crossover Frequency
2.5KHz

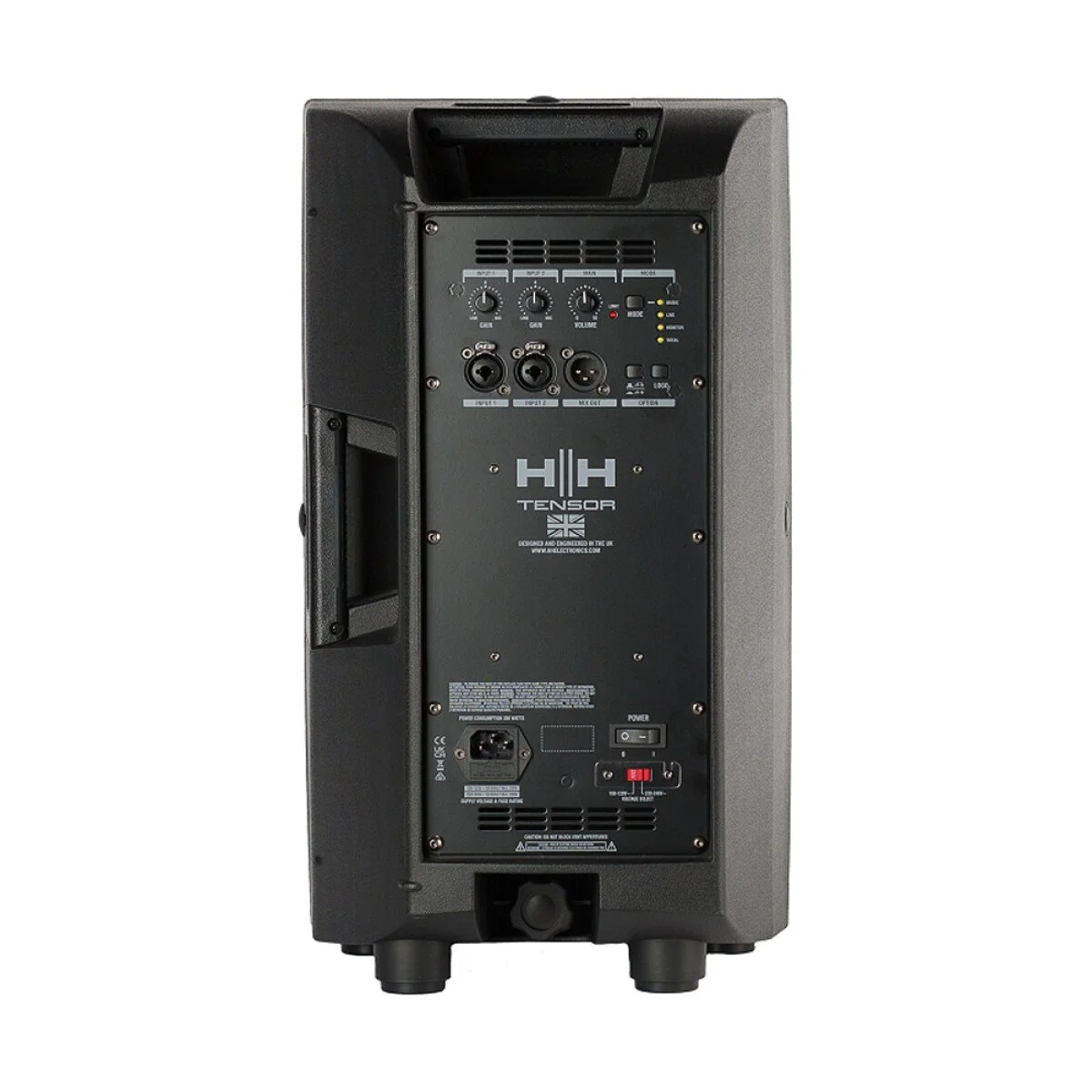

Inputs
2 x Balanced Female XLR/6.3mm Jack Combi Socket
Outputs
1 x Balanced Male XLR with ground lift switch
Controls
2x channel gain, Master Volume, logo on/off, Ground Lift, EQ Mode
Indicators
Power, Clip Indicator, EQ Mode, Front illuminated logo
EQ
User selectable performance presets for Music, Live, Monitor, Vocal
DSP
Crossover, EQ, Dual Band Limiters, Phase and Time Optimisation
Protection
Comprehensive protection and clip free limiting + clip indicator
Cabinet
Robust polypropylene cabinet with three handles and monitor angle
Pole Mount
35mm Distance Pole Socket
Grille
Heavy Gauge powder-coated steel, Black with acoustic foam backing
Flying Points
4 x M8 Mounting Points
Finish
Black
Unit Dimensions (Hwd)
530 x 300 x 310 mm 20.9" x 11.8" x 12.2"
Unit Weight
11.6Kg, 25.6 lbs
Carton Dimensions (Hwd)
575 x 370 x 360 mm 22.6" x 14.6" x 14.2" (Shipping Volume 0.077 M3)
Packed Weight
13.6Kg, 30 lbs
