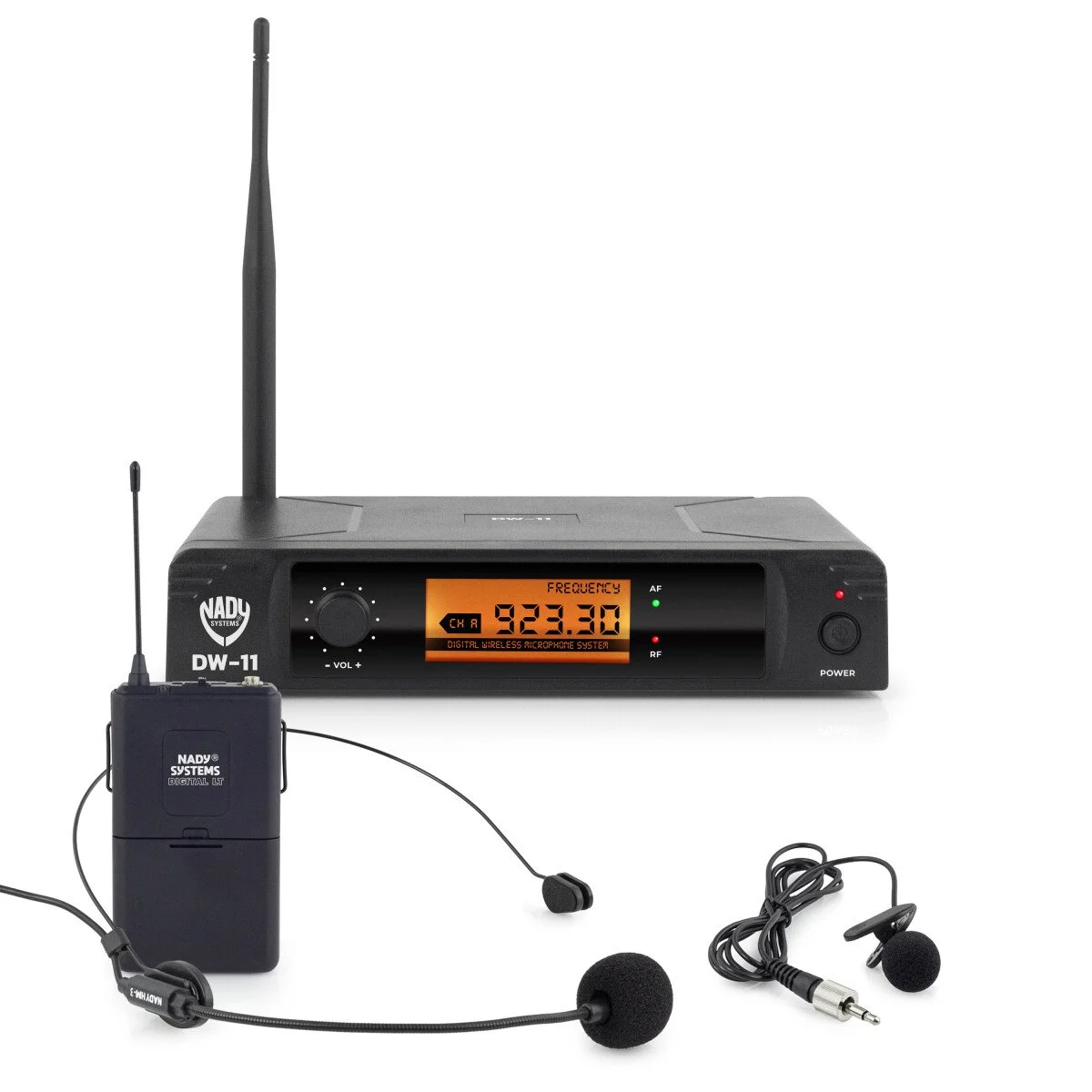

Nady DW-11 Digital Wireless Lapel and Headset Microphone System
- Overall System:
- Frequency Response: 20Hz - 20kHz ± 3dB
- Dynamic Range: 120dB (A-weighted)
- Total Harmonic Distortion: <0.1%
- Latency: 3msec (48kHz Sample Rate)
- Frequency Stability: ± 20PPM, PLL controlled
- Modulation: Digital QPSK
-

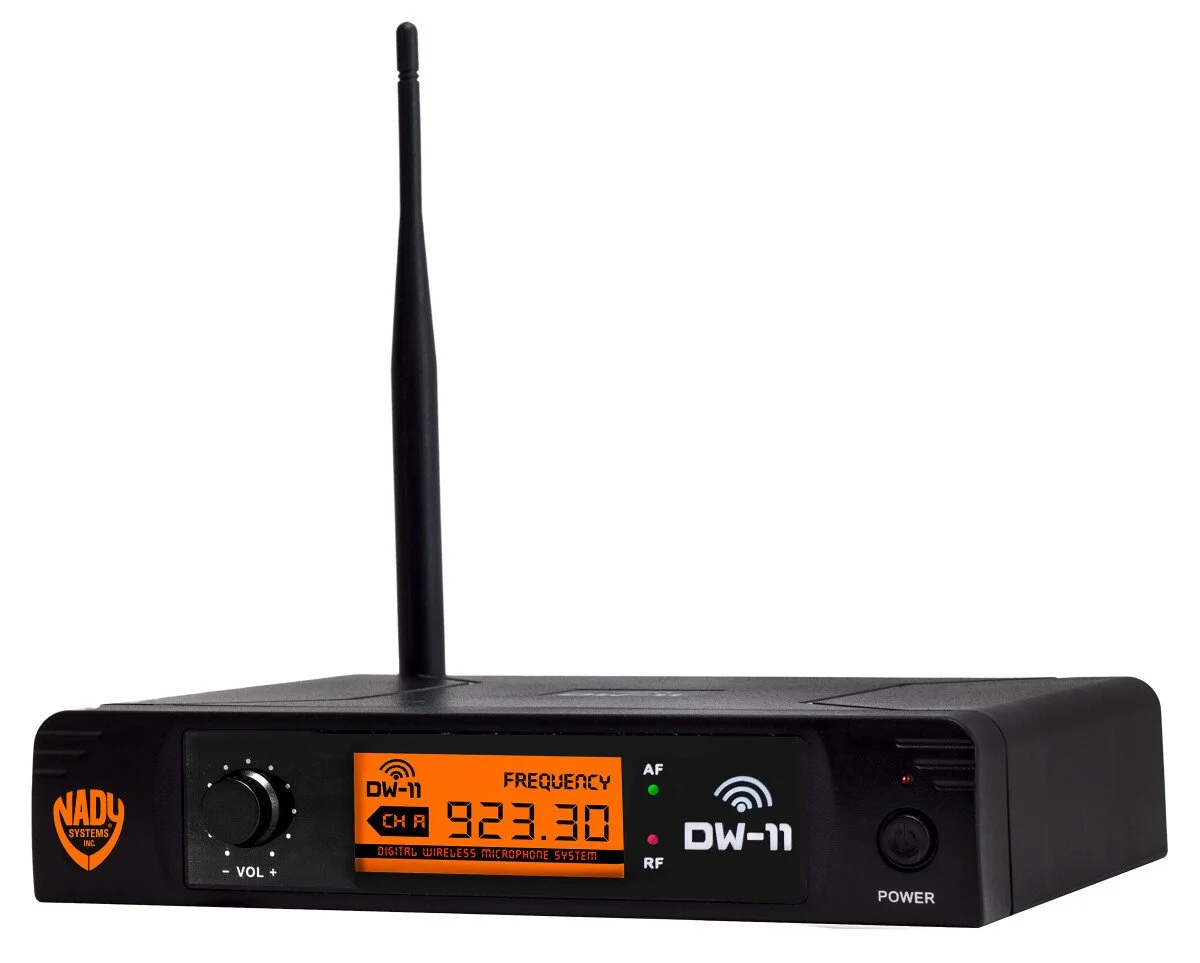

- Receiver:

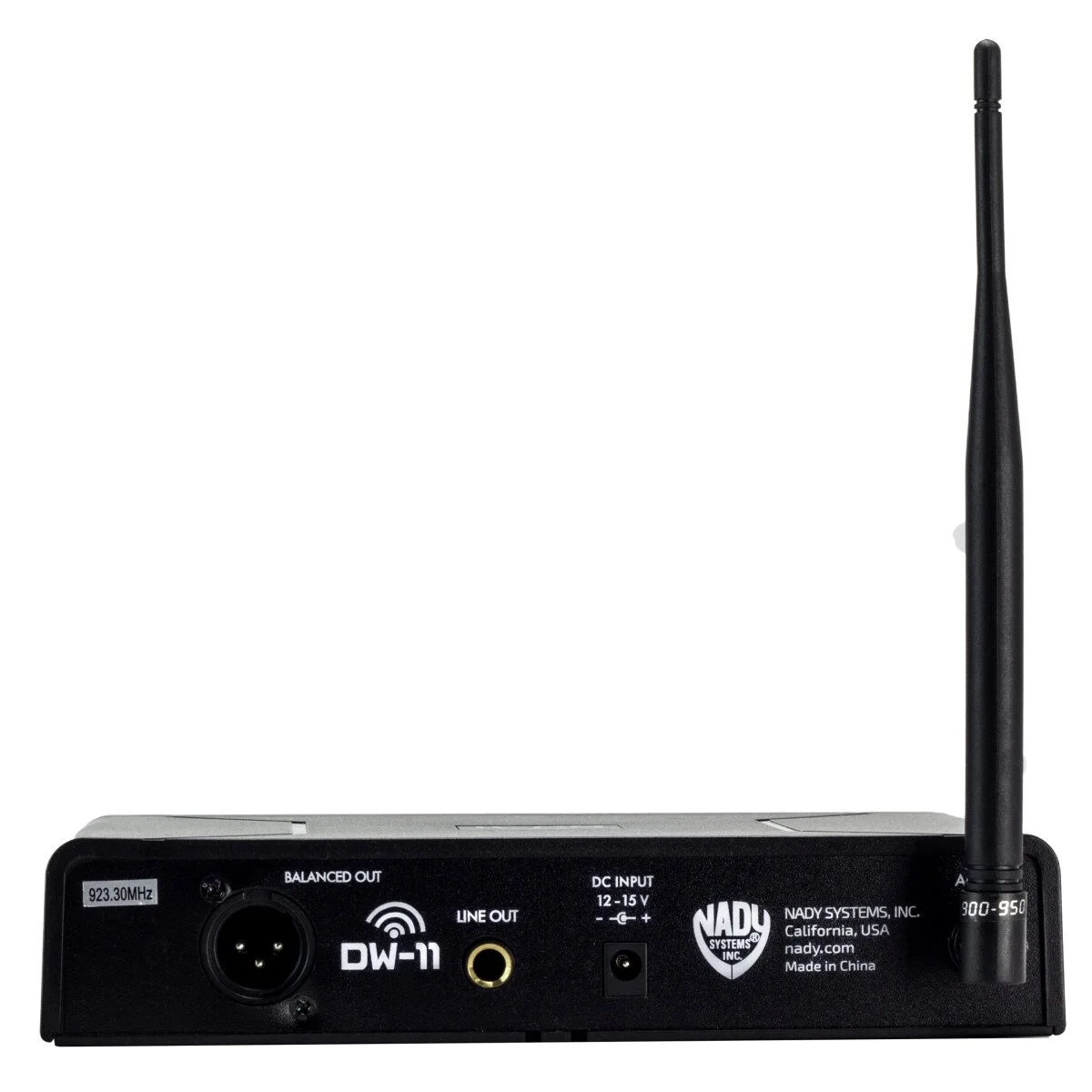

- Audio output: Balanced XLR Mic level and adjustable 1/4" Line level out
- Reception: External 7.25" (18.5cm) attached antenna
- Receiver Sensitivity: -94dBm
- Unwanted Signal Rejection: 60dB image and spurious
- Weight: 340 g (0.75lbs)
- Dimensions: 203 x 152 x 44 mm (8 x 6 x 1.75")
-

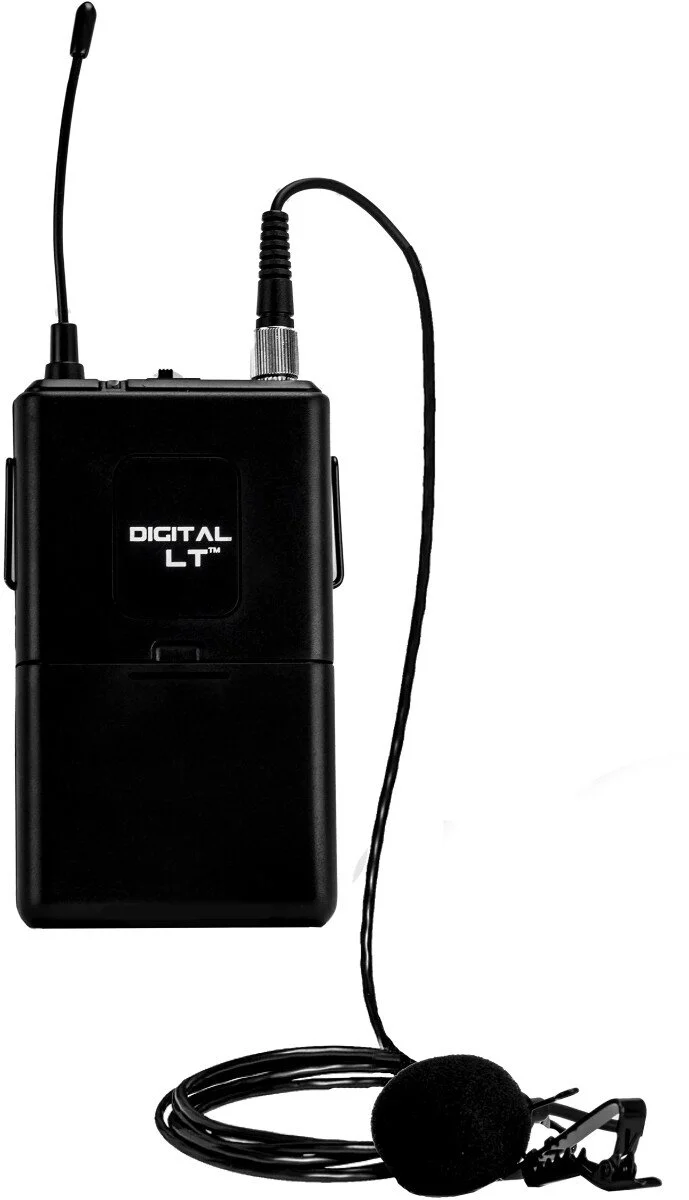

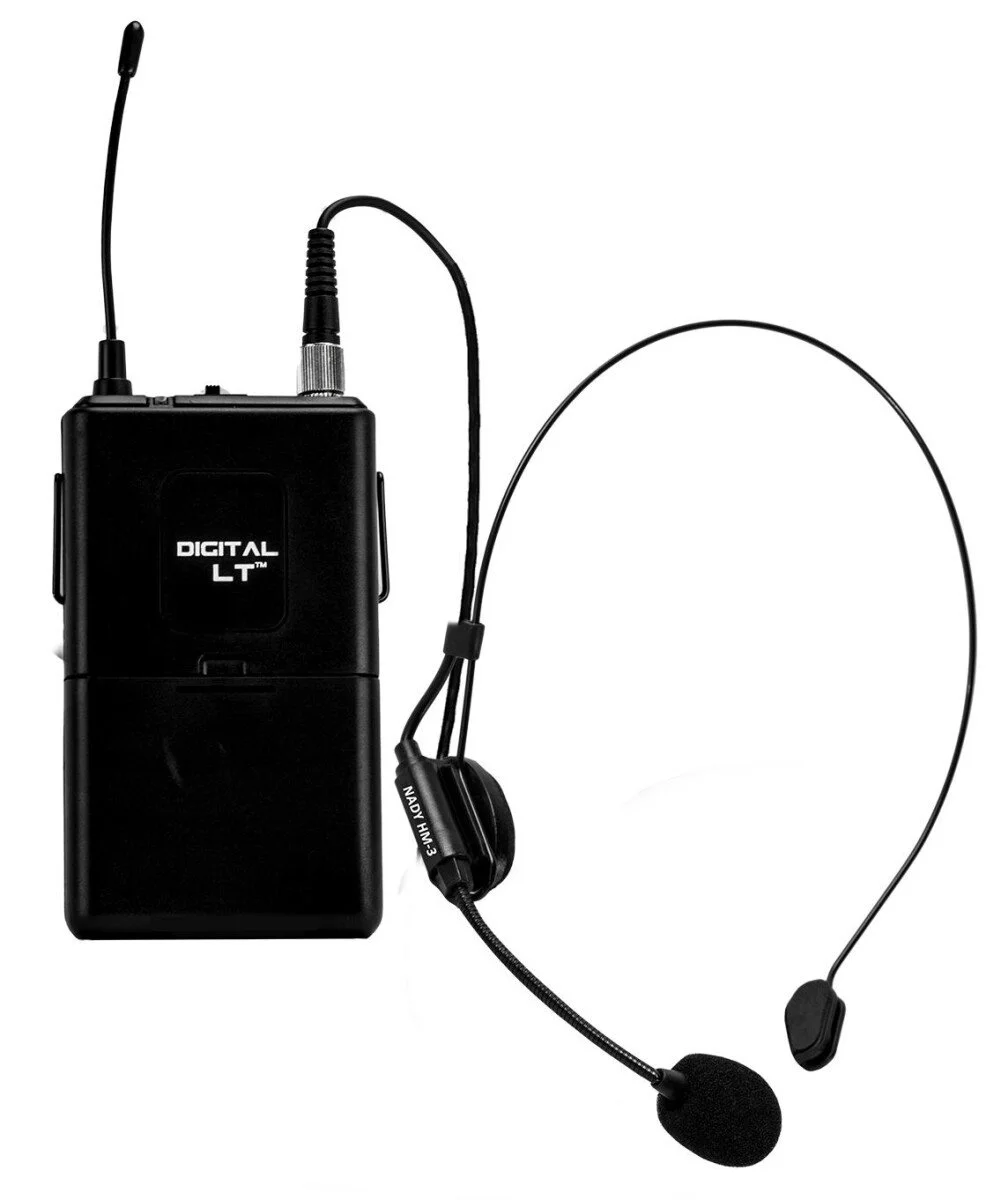

- Digital LT Bodypack Transmitter:
- RF Power Out: +13dBm, (50mW maximum allowed by FCC)
- RF Spurious Emissions: < -50 dB
- Battery type: 2 x AA battery
- Battery Life: Up to 11 Hours
- Input sensitivity: 2.1 mV / Pa
- Power consumption: 100 mA at 3 V
- Working distance: Up to 300 feet line-of-sight
- Audio Input: 1/8" (3.5mm) locking mini-jack
- Controls: Power switch, Audio Mute
- LED Indicator: Unit on (single flash), Low Battery Alert (red)
- Weight: 68 g (0.15lbs)
- Dimensions: 64 x 108 x 13mm (2.5 x 4.25 x 0.5")
-
- Optional accessories: RMT-1KUD rack tray for rack mounting either one or two receivers.
RF Carrier Frequency Range: Selected frequencies between 902 and 951MHz
